An Aluminum Heatsink serves as the primary thermal management solution for modern electronics because it offers an optimal balance of high thermal conductivity, low weight, structural rigidity, cost-effective manufacturing, and exceptional corrosion resistance. By pairing advanced mechanical profiles with specific alloy compositions, these systems maximize convective and radiative surface areas to efficiently transfer heat away from high-power semiconductors into the ambient environment.
To properly master the application of these vital cooling technologies, procurement teams and design engineers must delve deeply into the mechanical and thermal variables governing efficiency. Selecting the proper configuration involves evaluating material characteristics, profile geometries, mounting interfaces, and environmental operating parameters. The following comprehensive sections provide an analytical exploration of modern cooling systems, giving technical buyers the exact insights required to make informed manufacturing decisions.
From evaluating advanced surface anodization techniques to calculating the precise geometric surface area required for forced air environments, this ultimate guide covers every phase of thermal engineering. By reviewing structural profiles, mounting mechanisms, and custom manufacturing choices, readers will gain a complete understanding of how to implement maximum thermal efficiency in their next electronic hardware deployment.
What Makes Aluminum The Preferred Heat Sink Material
Common Heat Sink Profiles And Their Applications
Selecting The Right Size For Maximum Thermal Efficiency
Mounting Options For Secure Thermal Connection
Custom Solutions vs. Standard Profiles: Making The Right Choice
Surface Treatments And Their Impact On Performance
Active vs. Passive Cooling: When To Use Fans With Heat Sinks
Thermal Interface Materials For Optimal Heat Transfer

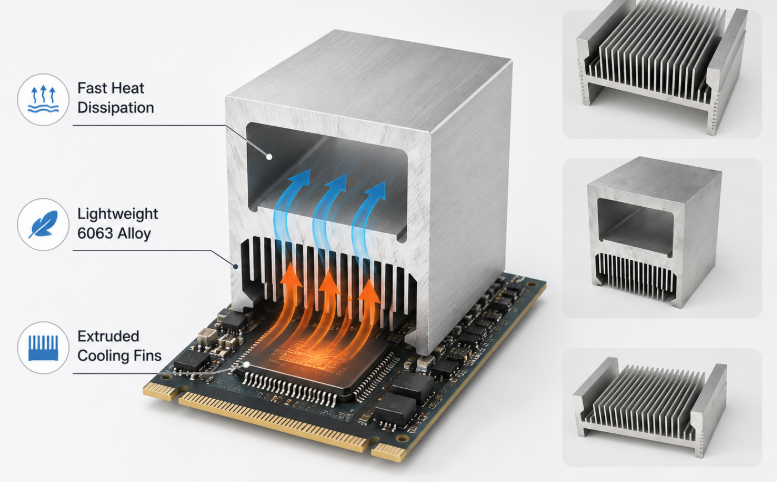

Aluminum stands out as the ultimate material for manufacturing an Aluminum Heatsink because it combines excellent thermal conductivity with lightweight versatility and remarkable cost efficiency, making it vastly superior to alternative metals like copper or steel for mass industrial production.
When examining the physics of thermal management, material selection dictates the base efficiency of any cooling module. Aluminum possesses a thermal conductivity range between 160 and 240 Watts per meter Kelvin depending on the specific alloy grade utilized, such as 6063 or 6061. This high thermal conductivity ensures that heat generated by high-power transistors is rapidly drawn away from the silicon base and distributed evenly across the cooling fins. While copper presents a higher raw thermal conductivity, its excessive weight and high material cost make it impractical for large-scale applications where structural load and project budgets are constrained. An Aluminum Heatsink achieves approximately seventy percent of the thermal performance of copper while weighing only a third as much, providing an unmatched strength-to-weight ratio.
Furthermore, the manufacturing flexibility of aluminum allows for the creation of intricate, high-surface-area profiles that are impossible or cost-prohibitive to achieve with other raw metals. The extrusion process allows molten aluminum to be pushed through precisely engineered steel dies, creating complex fin arrangements that expand the total convective surface boundary. This adaptability enables an Aluminum Heatsink to be shaped into micro-fin arrays, pinned geometries, or embedded interlocking configurations that match the aerodynamic profiles of specific electronics enclosures. The natural formation of a protective oxide layer on the metal surface also eliminates the risk of rapid atmospheric degradation, ensuring stable performance across decadal operational lifetimes.
From an economic standpoint, choosing an Aluminum Heatsink allows commercial enterprises to maintain highly competitive production budgets without sacrificing thermal performance. The widespread global availability of raw aluminum alloy stocks ensures price stability and reliable supply chains for contract manufacturers. Additionally, the excellent machinability of aluminum reduces tool wear during secondary milling, drilling, and tapping processes, lowering the overall cost per finished unit. This combination of structural strength, thermal velocity, manufacturing versatility, and financial viability cements the material as the industry standard for cooling high-performance electronics.
The physical geometry and manufacturing profile of an Aluminum Heatsink determine its specific thermal transfer capability and mechanical compatibility with electronic environments, ranging from simple extruded blocks to high-density bonded fin arrays.
Different operating environments require specialized fin shapes and base plate thicknesses to manage distinct thermal loads. The most ubiquitous type is the extruded Aluminum Heatsink, which is formed by pushing raw billets through a custom die to create straight, parallel fins. These extruded profiles are ideal for natural convection setups and low-to-medium power applications, such as power supply modules, motor drives, and consumer audio amplifiers. They offer an exceptionally cost-effective entry point for baseline thermal management while allowing for straightforward modification via CNC machining to fit specific board layouts.
For high-power applications where space is extremely limited and heat flux is dense, a bonded fin or fabric-fin Aluminum Heatsink is frequently deployed. This profile features an independent, thick base plate with precisely machined slots into which individual, highly thin fins are mechanically swaged, brazed, or bonded using thermally conductive epoxy. This method bypasses the geometric limits of standard extrusion ratios, allowing for much taller, thinner, and more densely packed fin arrays. These high-density configurations are commonly utilized in large industrial inverter systems, telecommunication base stations, and high-performance server racks where maximum surface area must be packed into a compact volumetric footprint.
Another prominent style includes stamped and cold-forged layouts designed for multi-directional airflow conditions. Cold forging allows for the fabrication of pin-fin arrays where individual cylindrical or square pins extend vertically from the base, allowing air to pass smoothly from any angle. This makes a pin-fin Aluminum Heatsink highly suitable for mobile industrial equipment, outdoor LED floodlighting systems, and enclosed network routers where unidirectional airflow cannot be guaranteed. Understanding these geometric profiles allows thermal engineers to match the physical properties of the cooling element with the precise aerodynamic conditions inside the product housing.
Sizing an Aluminum Heatsink requires balancing the total thermal resistance coefficient, available volumetric spacing, and the volumetric airflow rate to ensure the component junction temperature never exceeds safe operational thresholds.
The primary objective when sizing an Aluminum Heatsink is to establish a total thermal resistance path low enough to dissipate the maximum wattage produced by the underlying semiconductor. The calculation relies on determining the temperature differential between the maximum allowable junction temperature and the worst-case ambient air temperature, divided by the dissipated power in watts. This yields the maximum acceptable thermal resistance value, which guides the required physical footprint of the cooling array. A larger base surface area provides better heat spreading, preventing localized hot spots, while an increased number of fins expands the convective boundary layer responsible for transferring heat to the passing air currents.
Engineers must also analyze the physical volumetric constraints of the electronics enclosure when optimizing an Aluminum Heatsink profile. If the fin spacing is too dense in a natural convection system, the air will stagnate due to boundary layer overlap, causing a sharp drop in thermal efficiency. Conversely, if the fins are too far apart, valuable surface area is wasted, resulting in an inadequate cooling performance. To assist in selecting the ideal dimensions, the following table contrasts standard structural dimensions against performance metrics in natural convection scenarios:
To achieve maximum reliability in high-current applications, sourcing an expertly manufactured component is crucial. Utilizing a premium Aluminum Heatsink module ensures that base plate flatness and internal grain structures are optimized for rapid heat dissipation. A flat base is essential because any air gap under the chip acts as an insulation barrier, completely undermining the performance of the entire cooling assembly.
Selecting the appropriate mounting mechanism for an Aluminum Heatsink ensures consistent mechanical pressure across the interface zone, minimizing thermal contact resistance and maintaining structural integrity under high vibration.
Mechanical attachment methodologies directly influence how effectively heat transitions from the semiconductor case to the flat base of the Aluminum Heatsink. Screw mounting using pre-tapped holes or through-bolts represents the most reliable technique for large, heavy cooling profiles subjected to industrial shocks and vibrations. This method allows technicians to apply specific torque metrics, compressing the thermal interface material uniformly to achieve the lowest possible contact resistance. Screws are the preferred choice in heavy-duty industrial automation machinery, automotive power trains, and high-capacity electrical distribution panels.
For smaller board-level components like chipsets, central processing units, and localized power regulators, push pins and compression clips offer an efficient, tool-less assembly method. Push pins feature integrated springs that maintain a continuous downward force on the Aluminum Heatsink, compensating for any thermal expansion or contraction that occurs during rapid power cycles. This constant tension prevents the cooling element from shifting or separating from the component surface over years of continuous operation, ensuring a stable thermal pathway.
In high-volume consumer goods or low-mass assemblies where mechanical space is severely limited, thermally conductive tapes and epoxies provide an alternative mounting method. These adhesives provide dual functionality by providing both structural adhesion and a thermal bridge, eliminating the need for external mounting hardware or space-consuming brackets. However, because adhesive tapes provide lower clamping force compared to mechanical screws or spring clips, they are restricted to low-wattage devices where thermal flux densities are manageable. Selecting the ideal mounting configuration requires balancing structural durability, assembly throughput, and thermal performance constraints.
Choosing between a standard off-the-shelf profile and a custom engineered Aluminum Heatsink requires evaluating the specific thermal density of the application against tooling budgets, production volumes, and enclosure limitations.
Standard profiles are readily available from manufacturers with minimal lead times and zero initial tooling costs, making them excellent choices for prototyping stages and low-volume production runs. These catalog options include pre-configured dimensions that satisfy conventional electronic packages like TO-220, TO-247, or standard brick converters. If the thermal requirements of the system fall within normal operating bounds and the physical layout allows for standard sizing, a stock catalog Aluminum Heatsink offers a fast, reliable, and cost-effective solution.
However, when electronics designs involve unconventional geometries, high heat flux concentrations, or severe weight restrictions, standard shapes often fail to deliver adequate performance. In these scenarios, integrating an advanced custom industrial Aluminum Heatsink allows engineering teams to tailor every dimension—including fin count, base thickness, and internal airflow channels—to match the exact thermal and physical profile of the system. Custom engineering optimizes material placement, adding mass only where heat concentration is highest, which minimizes total weight and improves overall system efficiency.
While custom designs require an initial financial investment in extrusion dies and CNC programming, the long-term unit cost savings can be significant in high-volume production. By optimizing the cooling profile to integrate mounting tabs, specialized brackets, or pre-drilled holes directly into the extrusion mold, secondary assembly labor is drastically reduced. This choice between standard and custom solutions ultimately depends on the specific complexity of the thermal challenges, the total production volume, and the long-term financial goals of the commercial enterprise.
Surface treatments applied to an Aluminum Heatsink significantly modify its surface emissivity, aesthetic appearance, and environmental resistance, directly influencing the overall heat dissipation capacity in passive cooling environments.
Raw aluminum has a relatively low thermal emissivity coefficient of around 0.05, meaning it radiates heat poorly into the surrounding air. To improve performance, an electrochemical process called anodization is widely utilized to build a controlled oxide layer on the Aluminum Heatsink surface. Anodizing, particularly clear or black anodization, dramatically increases the surface emissivity coefficient to over 0.80. This boost in radiative efficiency is highly valuable in natural convection environments, where radiative heat transfer can account for up to twenty-five percent of the total cooling performance.
Beyond improving thermal radiation, surface treatments protect the underlying alloy from environmental degradation in harsh operating conditions. Industrial plants, marine installations, and outdoor telecommunication enclosures expose electronics to moisture, salt spray, and corrosive chemicals. An untreated Aluminum Heatsink would quickly develop surface oxidation and pitting, creating an insulating debris layer that degrades thermal efficiency. Anodization or chromate conversion coating creates a durable barrier that preserves the integrity of the metal fins, ensuring consistent thermal conduction over decades of outdoor service.
Engineers must carefully match the chosen surface finish with the primary cooling mechanism of the system. For instance, in forced-air cooling systems driven by powerful fans, convective heat transfer dominates, making the radiative emissivity of the surface finish less critical to performance. In these scenarios, a lightweight wash or chromate conversion coating is often selected to provide cost-effective corrosion resistance without the added processing time of deep color anodization. The following list highlights the primary characteristics of common surface finishes:
Black Anodization: Maximizes radiative emissivity; ideal for natural convection environments; provides exceptional scratch and corrosion resistance.
Clear Anodization: Maintains the natural aesthetic appearance of aluminum; increases emissivity; provides robust atmospheric protection.
Chromate Conversion: Delivers low electrical resistance across contact zones; provides excellent corrosion barrier; ideal for grounding connections.
Powder Coating: Used primarily for specific aesthetic requirements; can introduce slight thermal insulation; restricted to low-flux installations.
Deciding between active and passive cooling involves analyzing the total power dissipation requirements, noise constraints, and environmental reliability factors of the targeted electronic deployment.
Passive cooling relies entirely on natural convection and radiation to move heat away from the Aluminum Heatsink. As the air surrounding the hot fins heats up, its density decreases, causing it to rise naturally and drawing cooler ambient air into the base of the fin array. This continuous cycle operates silently and requires no electrical power or moving parts, making it a highly reliable thermal management methodology. Passive systems are ideal for remote monitoring equipment, medical hardware, outdoor LED installations, and high-fidelity audio equipment where fan noise and maintenance access are major concerns.
Active cooling integrates a mechanical fan or blower directly into the Aluminum Heatsink assembly to force air rapidly through the fin channels. This forced convective airflow thins the thermal boundary layer on the metal surfaces, increasing the heat transfer coefficient by a factor of three to ten compared to natural convection. Consequently, an active configuration can handle much larger thermal loads within a fraction of the physical size required by a passive system. Active cooling is essential for high-performance computing systems, industrial laser power supplies, and electric vehicle charging stations where heat density is exceptionally high.
To help system designers evaluate these cooling methodologies, the table below compares the core trade-offs of active and passive cooling configurations:
To optimize system performance, utilizing a precisely engineered Aluminum Heatsink framework ensures the fin geometries are perfectly matched to the specific pressure drop characteristics of your selected cooling fans. This geometric alignment maximizes airflow velocity through the core channels, eliminating stagnant air pockets and ensuring optimal cooling performance across the entire system.
Thermal Interface Materials eliminate microscopic air voids between the semiconductor package and the Aluminum Heatsink base, minimizing contact resistance to ensure efficient heat transfer across the mechanical junction.
Even when machined to high tolerances, the mating metal surfaces of a semiconductor case and an Aluminum Heatsink base appear rough under magnification, filled with microscopic peaks and valleys. When clamped together, these surfaces touch only at the highest points, leaving microscopic air pockets trapped in between. Because still air has an extremely low thermal conductivity of approximately 0.026 Watts per meter Kelvin, these voids act as an insulating barrier that severely restricts heat flow. Applying a Thermal Interface Material fills these microscopic gaps, replacing air with a highly conductive compound that facilitates smooth thermal transition across the boundary.
Thermal interface solutions are available in several formulations to meet distinct manufacturing and performance requirements, including thermal greases, phase-change pads, and compressible gap fillers. Thermal grease or paste consists of silicone or hydrocarbon oils loaded with conductive ceramic or metallic fillers, offering exceptionally low thermal resistance for high-performance chips. However, paste requires careful application to avoid pump-out effects during long-term thermal cycling. For high-volume assembly lines, solid phase-change pads offer a clean, pre-cut alternative that softens and flows into surface micro-roughness once the components reach operating temperatures.
When choosing a thermal interface material, engineers must balance thermal conductivity, material thickness, electrical isolation requirements, and long-term stability. If the semiconductor backing carries an active voltage, an electrically insulating thermal pad must be used to prevent short-circuiting the Aluminum Heatsink assembly. Properly calculating the required clamping pressure ensures the interface material compresses to its optimal bond line thickness, minimizing thermal resistance and ensuring consistent cooling performance over the lifespan of the electronics.
Effective thermal management in modern electronics requires a systematic approach that balances material selection, geometric design, surface finishes, and secure mounting interfaces. An Aluminum Heatsink remains the industry-standard choice due to its exceptional thermal performance, lightweight characteristics, and manufacturing cost-efficiency. By matching specific profile styles—such as standard extrusions or high-density bonded fin arrays—with the exact aerodynamic conditions of the enclosure, engineering teams can successfully maintain component temperatures well below critical limits, preventing thermal degradation and ensuring stable long-term operation.
As power densities continue to rise across industrial, automotive, and telecommunications sectors, the successful integration of custom thermal profiles and advanced thermal interface materials becomes increasingly vital. Investing in high-quality aluminum profiles and optimizing mounting compression forces allows commercial enterprises to achieve maximum system reliability and peak operational throughput. Utilizing these proven cooling principles ensures that electronic assemblies can handle demanding modern workloads without the risk of localized hot spots or catastrophic hardware failures.
